Flowing Enhancers

HTPA Flowing Agent F-S2500

F-S2500 is a novel flowing agent specially developed for high temperature polyamide (HTPA). F-S2500 has excellent thermal stability and good compatibility with HTPA. Adding 1%, the flowability is significantly improved, while maintaining good mechanical and thermal properties.

1. Materials

PPA: Benzo SL 1252
Flowing agent: Inovia F-S2500

2. Processing

Drying: 120℃, 4h.
Extrusion temperature: 290/310/310/305/290/290/290/290/300/310℃
Injection temperature: 300~320℃; mold temperature: 130~135℃

Note: "HTPA" in the diagram refers to HTPA pure resin after extruding.

3. Application Example Data

Table 1. Flowability

	Test condition	HTPA	+1% F-S2500
MI (g/10min)	320℃, 2.16 kg	24	46
Spiral flow length	Injection: 320℃	21	27

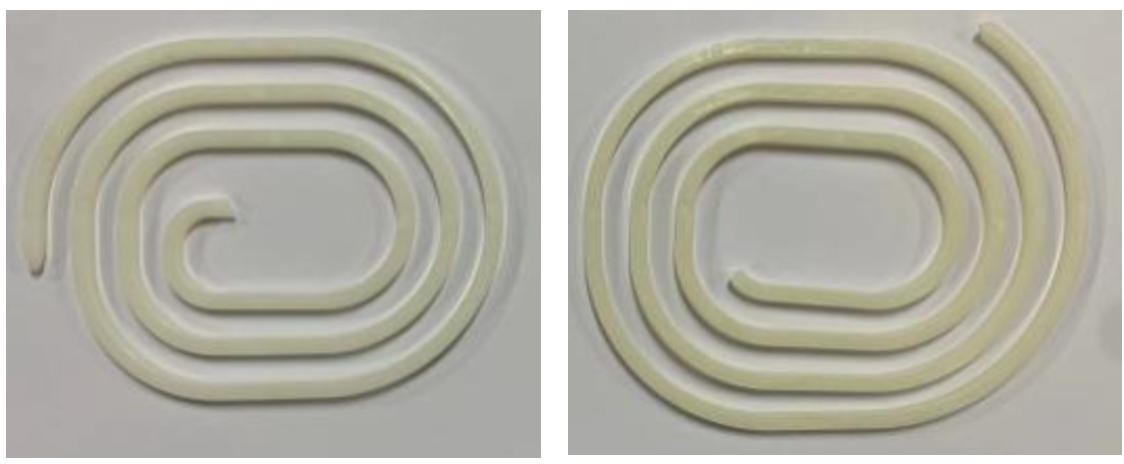

Figure 1. Spiral flow length: HTPA (left); HTPA+1% F-S2500 (right)

Table 2. Mechanical and Thermal Properties

	Method	Unit	HTPA	+1% F-S2500
Flexural strength	ISO 178	MPa	96	95
Flexural modulus	ISO 178	MPa	2947	2930
Charpy notched impact strength	ISO179	kJ/m²	6.5	6.1
Charpy un-notched impact strength	ISO179	kJ/m²	16.9	15.8
Tensile strength	ISO 527	MPa	47	44
Elongation at break	ISO 527	%	2.5	2.3
HDT A (1.8 MPa)	ISO 75	℃	99	94
VST (50N)	ISO 306	℃	258	256

Table 3. Flowability of 30%GF reinforced HTPA

	Test Method	+0% F-S2500	+1% F-S2500
MI (g/10min)	320℃, 5 kg	65	91
Spiral flow length	Injection: 320℃	15	18
