Flowing Enhancers

PC Flowing Agent Masterbatch F-M510

F-M510 is a flowing agent(FA) masterbatch developed for polycarbonate (PC). It can effectively improve the processing flowability of modified PC. Otherwise, it doesn’t affect optical, thermal, and mechanical properties.

1. Materials

PC: Covestro Makrolon 2805
Flowing agent: Inovia F-M510 (10% AF-25 )

2. Processing

Drying: 120℃, 4h.
Extrusion temperature: 230~260℃
Injection temperature: 260~270℃; mold temperature: 60~80℃

Note: "PC" in the diagram refers to PC pure resin after extruding.

3. Application Example Data

Table 1. Flowability

	Test condition	PC	+1% F-M510
MI (g/10min)	300℃, 1.20 kg	15	20
Spiral flow length	Injection T: 310℃	14	15

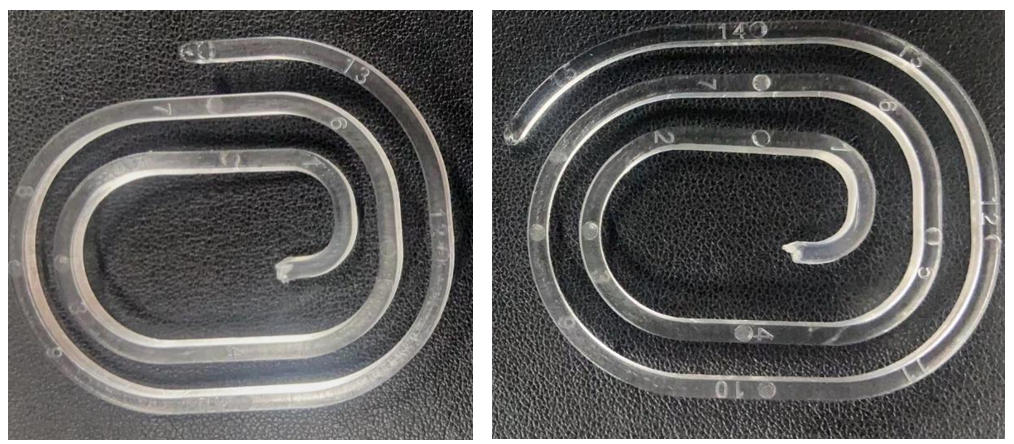

Figure1. Spiral flow length: PC (left); PC+1% F-M510 (right)

Table 2. Optical properties

	Method	PC	+1% F-M510
Transmittance (%)	GB/T-2410(1.6mm)	88.0	87.45

Table 3. Mechanical, thermal properties

	Method	Unit	PC	+1% F-M510
Flexural strength	ISO 178	MPa	92	93
Flexural modulus	ISO 178	MPa	2367	2404
Charpy notched impact strength	ISO179	kJ/m²	68	66
Tensile strength	ISO 527	MPa	63	63
Elongation at break	ISO 527	%	65	62
HDT A (1.8 MPa)	ISO 75	℃	119	119
VST (50N)	ISO 306	℃	144	143

Table 4. Flowability of Non-reinforced PC

PC	Test condition	0% F-M510	1% F-M510	2% F-M510	3% F-M510	4% F-M510
MI (g/10min)	300℃, 1.20 kg	15	20	23	30	33

Table 5. Flowability of GF Reinforced PC

PC+20%GF	Test condition	0% F-M510	1% F-M510	2% F-M510	3% F-M510	4% F-M510
MI (g/10min)	300℃/1.20 kg	8.5	12	15	18	23
